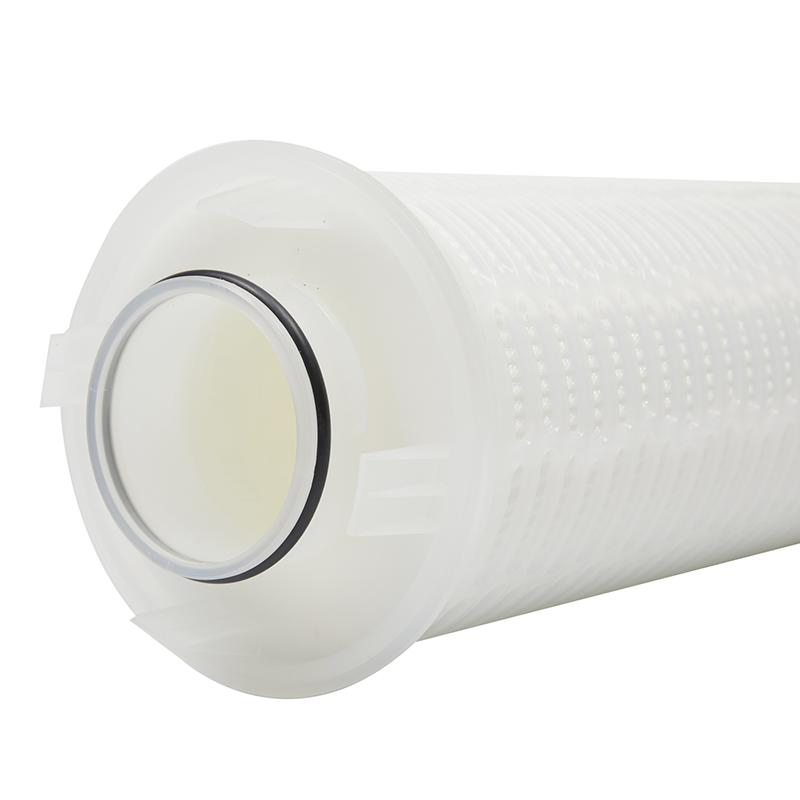

Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
1 / 5
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge
Topology High Water Flow Capacity Pleated Filter Cartridge

Topology High Water Flow Capacity Pleated Filter Cartridge

Customization: Available
Type: PP
Usage: Environmental Protection, Chemical Industry
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
CPPL600
Motive Force
Vacuum
Style
Tube
Certification
CE
Transport Package
Export Standard Packing
Specification
5"-50"
Trademark
OEM
Origin
China
HS Code
8421991000
Capacity
5,000,000 pieces/Year
🔍

Product Description

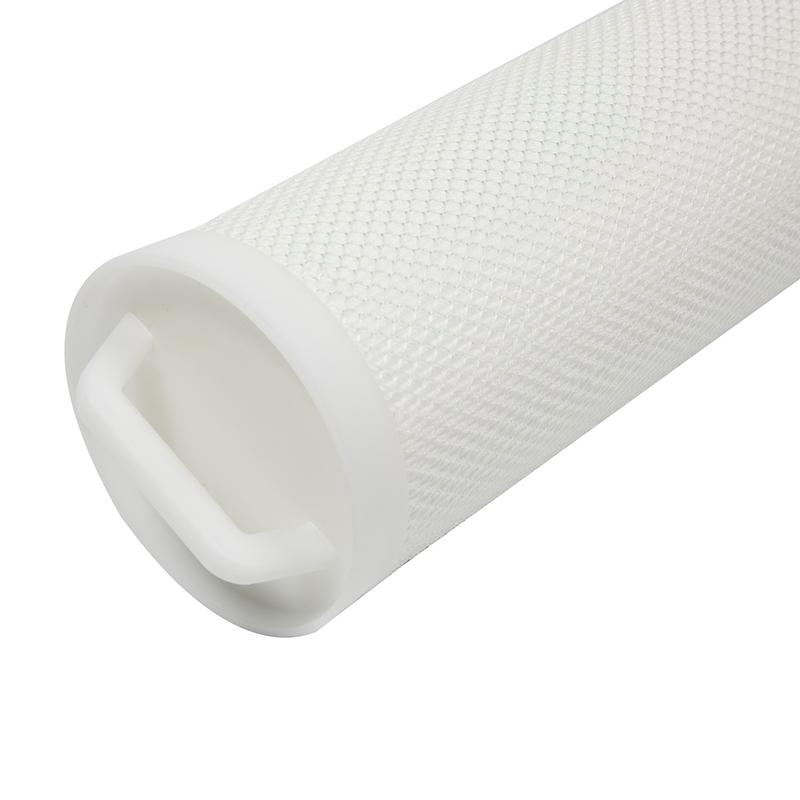

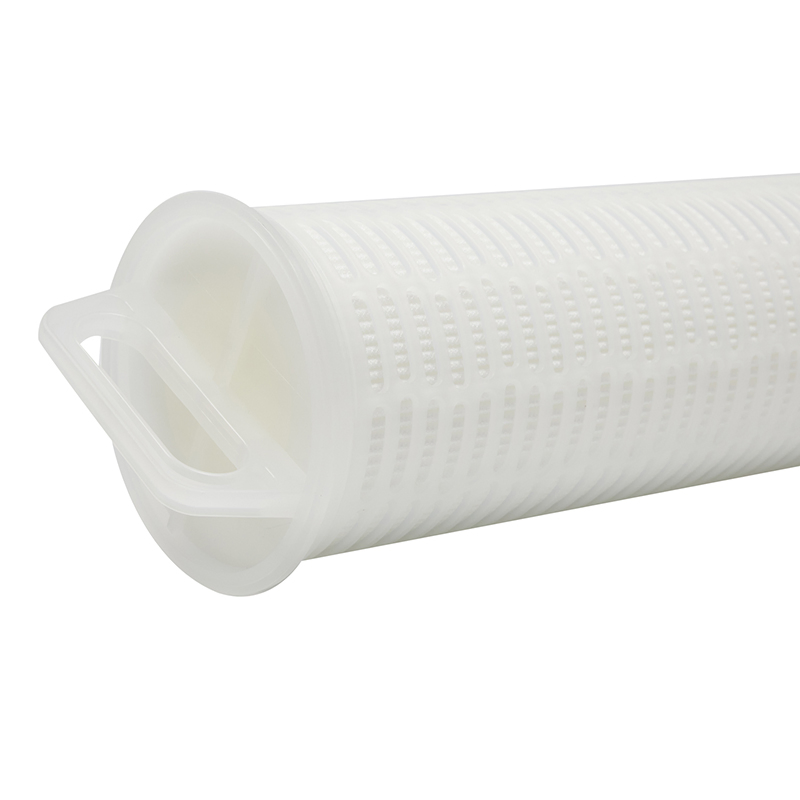

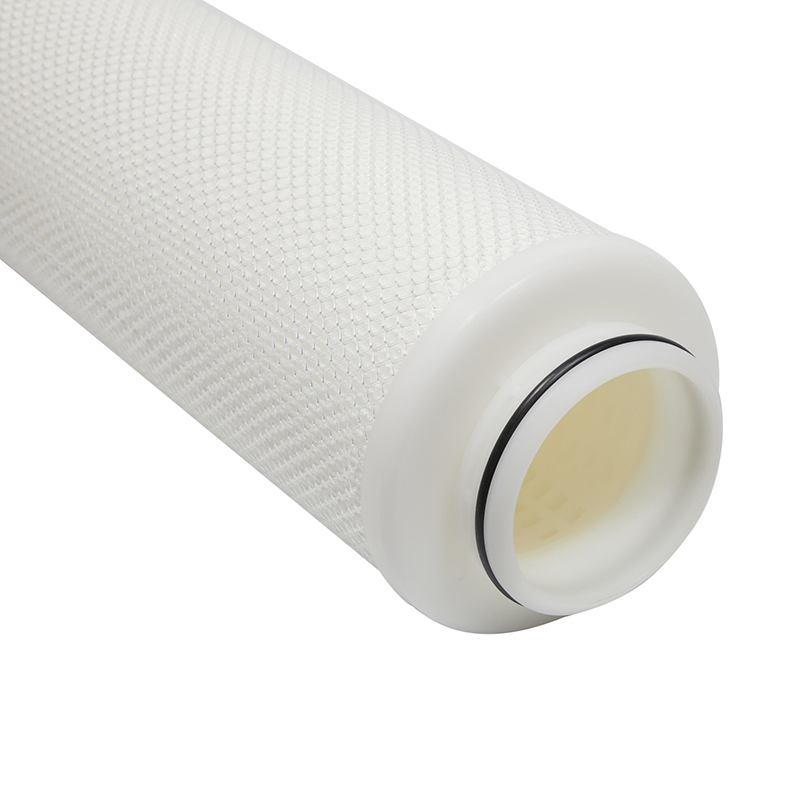

Topology High Water Flow Capacity Pleated Filter Cartridge

The High Flow filter is ideally suited for applications such as cooling water, pre-RO, and resin trap filtration. It features a large diameter, coreless, single open-ended, pleated design with an inside-to-outside flow pattern. The unique crescent-shaped pleat geometry, combined with its 152 mm / 6 in diameter, significantly reduces the number of filters and the size of the housing required.

✓ Up to 50% smaller filter system footprint possible.
✓ Up to forty times fewer elements to change out.
✓ Very high flow rates: up to 500 gpm / 114 m³/hr per cartridge.
✓ Available in 20 in (508 mm), 40 in (1016 mm), and 60 in (1524 mm) lengths.
✓ Coreless construction to minimize waste disposal.
✓ Absolute rated filter medium for reproducible performance.
Pleated Filter Cartridge Detail 1

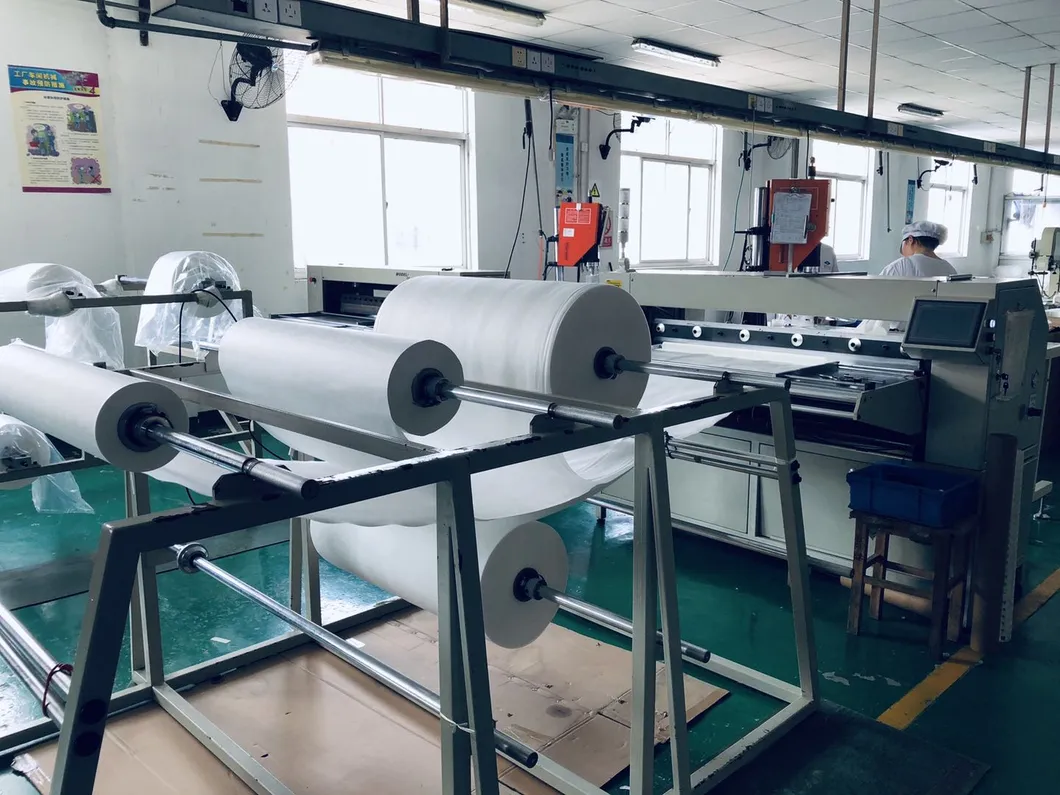

Pleated Filter Cartridge Detail 2
Pleated Filter Cartridge Detail 3
Pleated Filter Cartridge Application 1
Pleated Filter Cartridge Application 2
Pleated Filter Cartridge Application 3
Filter Cartridge Technical Overview
❓

Frequently Asked Questions

What is the maximum flow capacity of these filter cartridges? The cartridges can handle very high flow rates of up to 500 gpm (114 m³/hr) per unit.
In what lengths are the High Flow water filters available? They are available in three standard lengths: 20 inches (508 mm), 40 inches (1016 mm), and 60 inches (1524 mm).
What are the primary applications for this filter? It is ideally suited for cooling water systems, pre-RO (Reverse Osmosis) filtration, and resin trap applications.
How does the design help reduce costs? The large diameter and unique crescent-shaped pleats allow for a system that is up to 50% smaller, requiring fewer elements and smaller housings.
What is the flow pattern of the cartridge? The cartridge uses an inside-to-outside flow configuration, which ensures all contaminants are held within the single open-ended filter.
Are these filters environmentally friendly? Yes, the coreless construction helps minimize waste disposal volume compared to traditional filters.
